| Tractor Trailer |
|
Tractor Trailer |

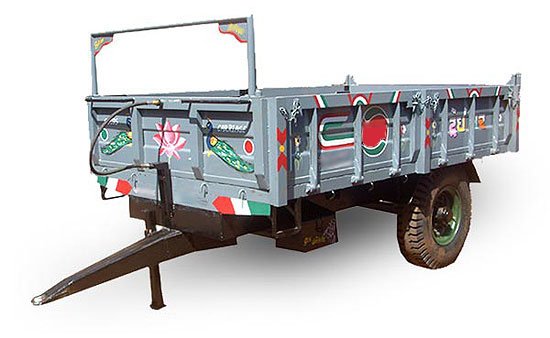

| 2 Wheels Hydraulic Tractor Trailer |
| Langth of Trailer |
3125mm |
| Width of Trailer |
1830mm |
| Height of doors |
500mm |
| Chassis Details Channel Used Chassis Sized |
177mm x 76mm
2510mm x 1000mm |
Sub Chassis Channel used
Sub Chassis Size |
100mm x 50mm
3050mm x 1000mm |
Frame Channel used
Frame Size |
75mm x 38mm
3125mm x 1830mm |
| Bottom plate |
6mm Thick |
| Side door Plate |
3mm |
| Axel |
75mm x 75mm ( Thick ) |
| Wheel Plates |
8mm Thick |
| Axel Housing |
Heavy ( 8 Holes ) |
| Bearings Size in Axel |
32211 and 32215. |
| Tyre Size |
9.00 x 16 |
| Hydraulic Cylinder |
Single Cylinder ( 5 Metric Tone Capacity ) |
|
| |
Water Tank |
|
We are engaged in bringing forth well designed Water Tank all over the country. We are counted among the top manufacturerrs and Suppliers of Tempo Water Tank. The Water Tanker on TATA LPT 1109 of capacity ranging from 2 to 20 Kl with sprinkler & side discharge is available.
- Well designed
- First grade SS and MS used
- Completely corrosion resistant
- Flawless quality
|
|
|
|
|
|
|
| |
|
